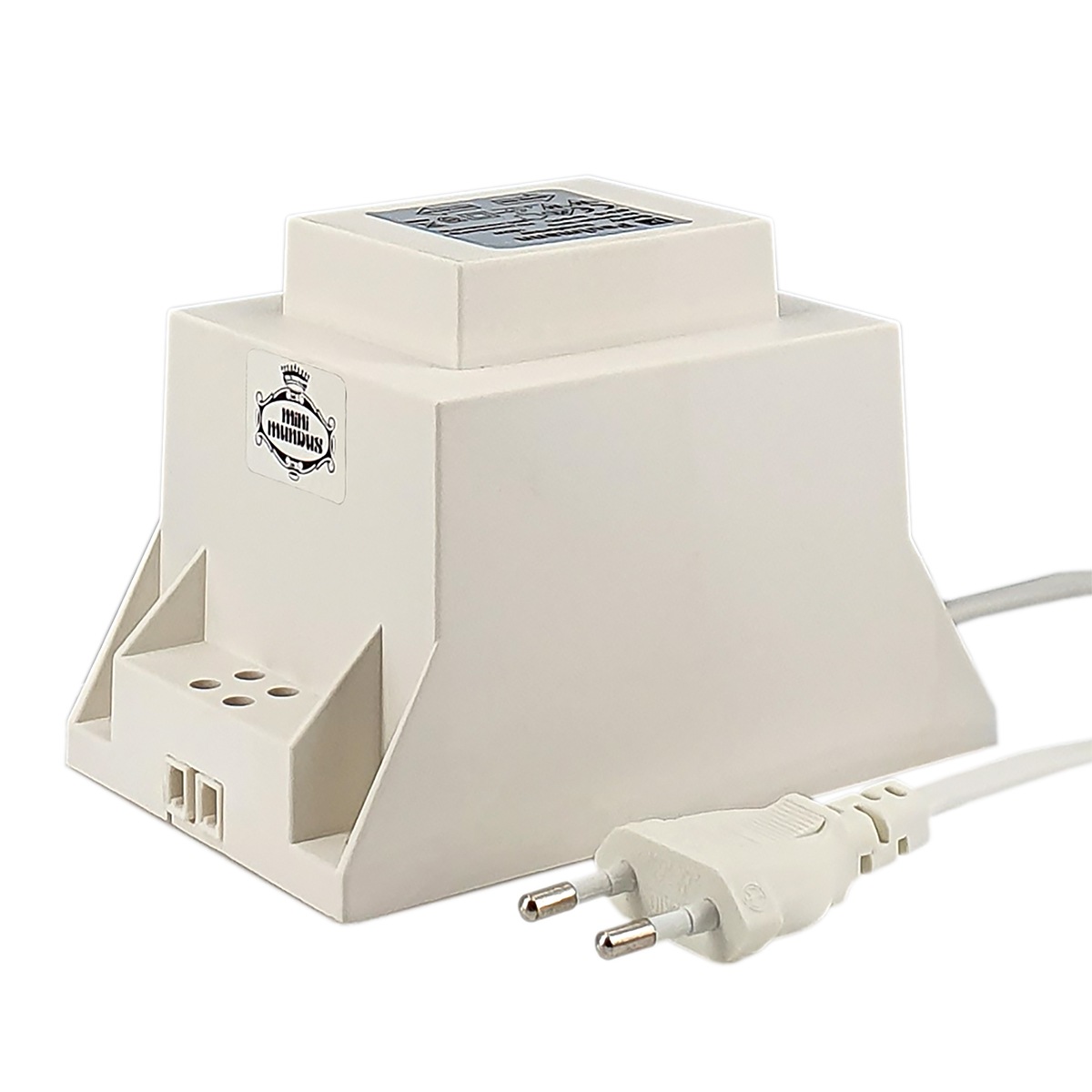

3.7 A transformer
€ 54,50
incl. 19 % VAT excl. shipping costs
weight 1,4 kg
Sofort versandfähig, ausreichende Stückzahl
Wishlist:
Product.Nr. 22510
primary: 230 V~, 50 Hz/60Hz
secondary: 12-13.5 V~ / 3.7 A
60 VA, with excess temperature switch.
Dimensions (WxHxD):
108 x 75 x 65 mm
Note:
The transformer is suited for a max. of 67 incandescent lamps or 7 light bulb strips (20600).
For higher loads we recommend our 8.3 A transformer (Item No. 22520).
If the transformer becomes overheated (overloaded), then the installed thermostatic switch shuts off the transformer to protect the system.
Useful additions
Recommended products
Customers also purchased
product description
Connected loads:
primary: 230 V~, 50 Hz/60Hz
secondary: 12-13.5 V~ / 3.7 A
60 VA, with excess temperature switch.
Dimensions (WxHxD):
108 x 75 x 65 mm
Note:
The transformer is suited for a max. of 67 incandescent lamps or 7 light bulb strips (20600). For higher loads, i.e. a supply of more than the specified number of incandescent lamps or light bulb strips, we recommend our 8.3 A transformer with Item No. 22520.
If the transformer becomes overheated (overloaded), then the installed thermostatic switch shuts off the transformer to protect the system.
